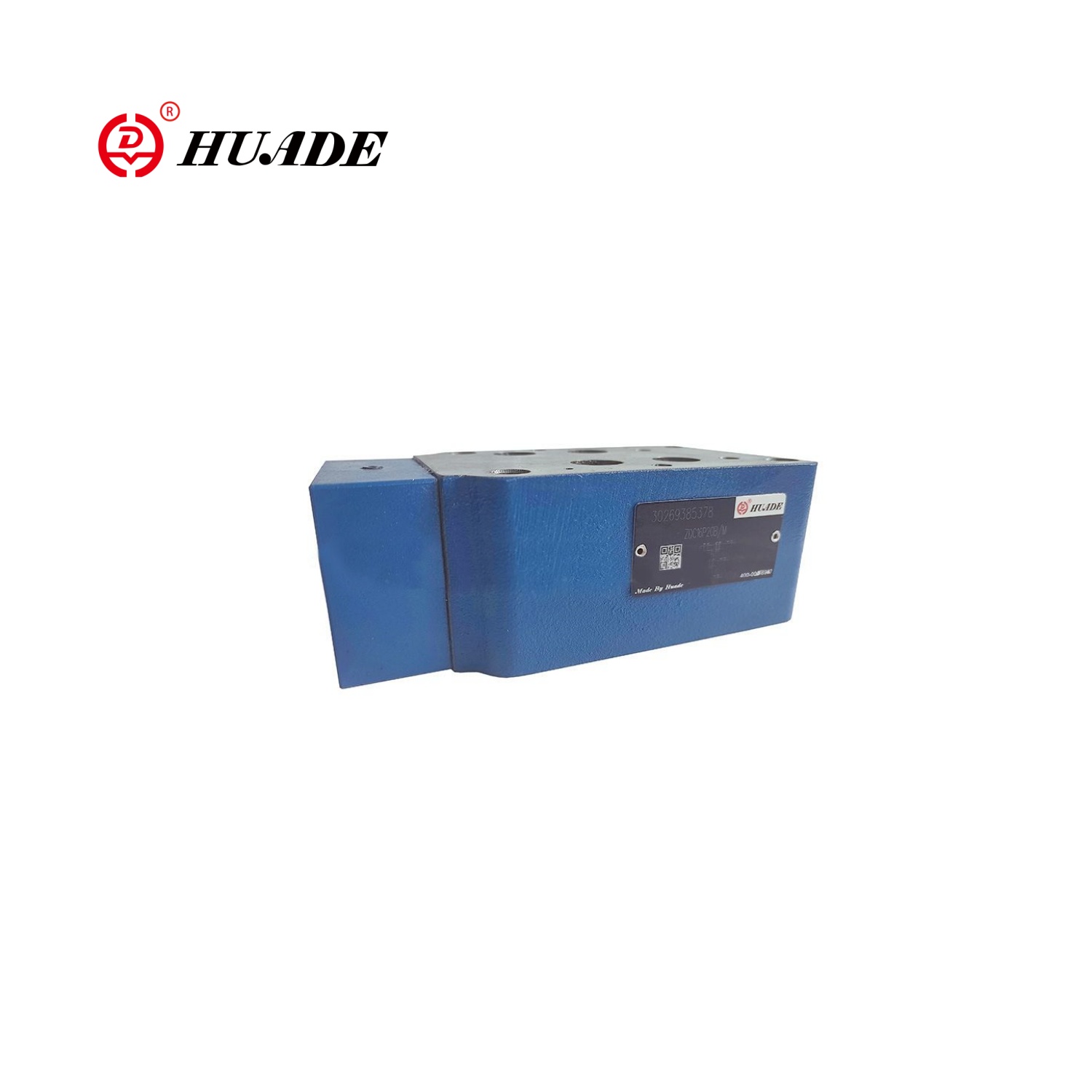

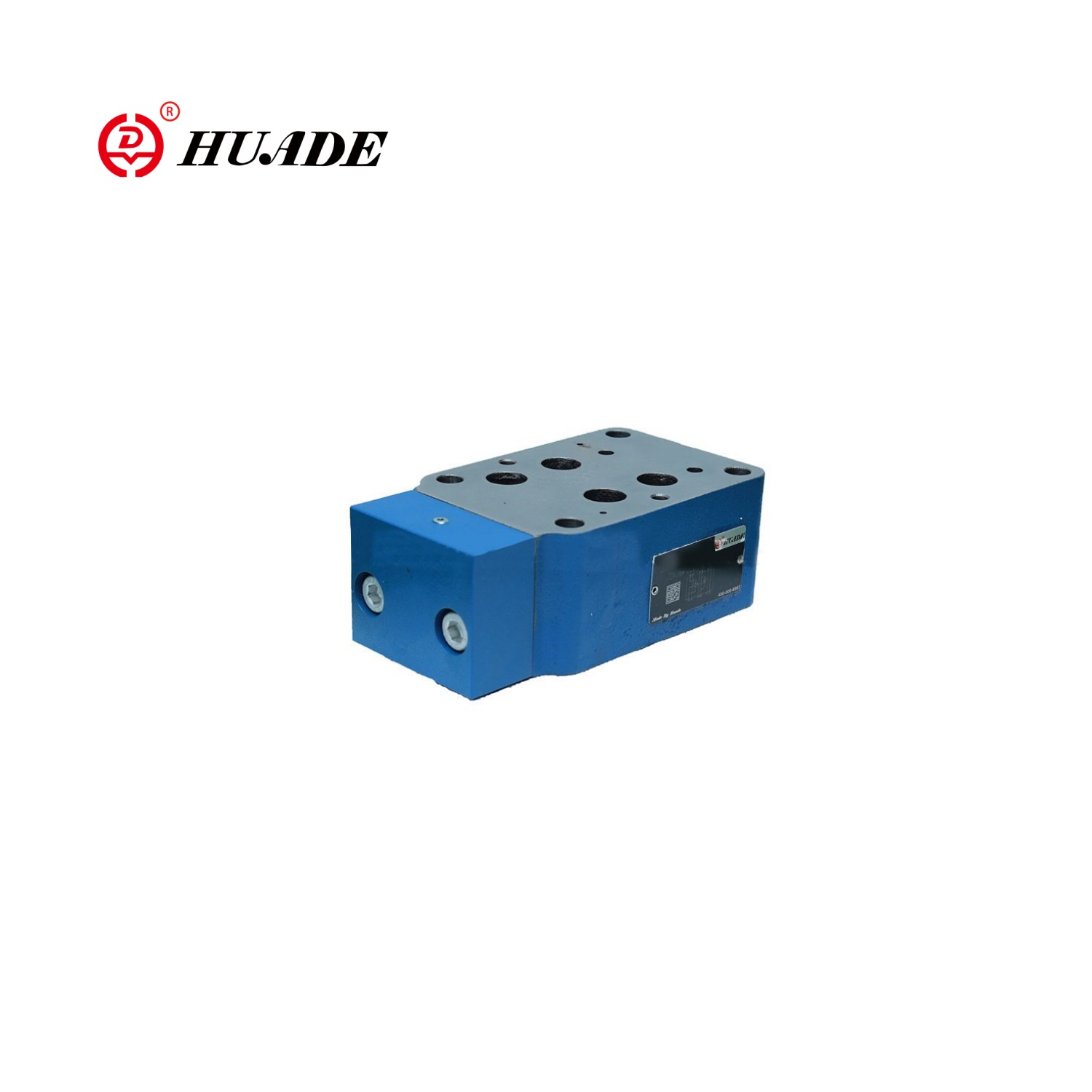

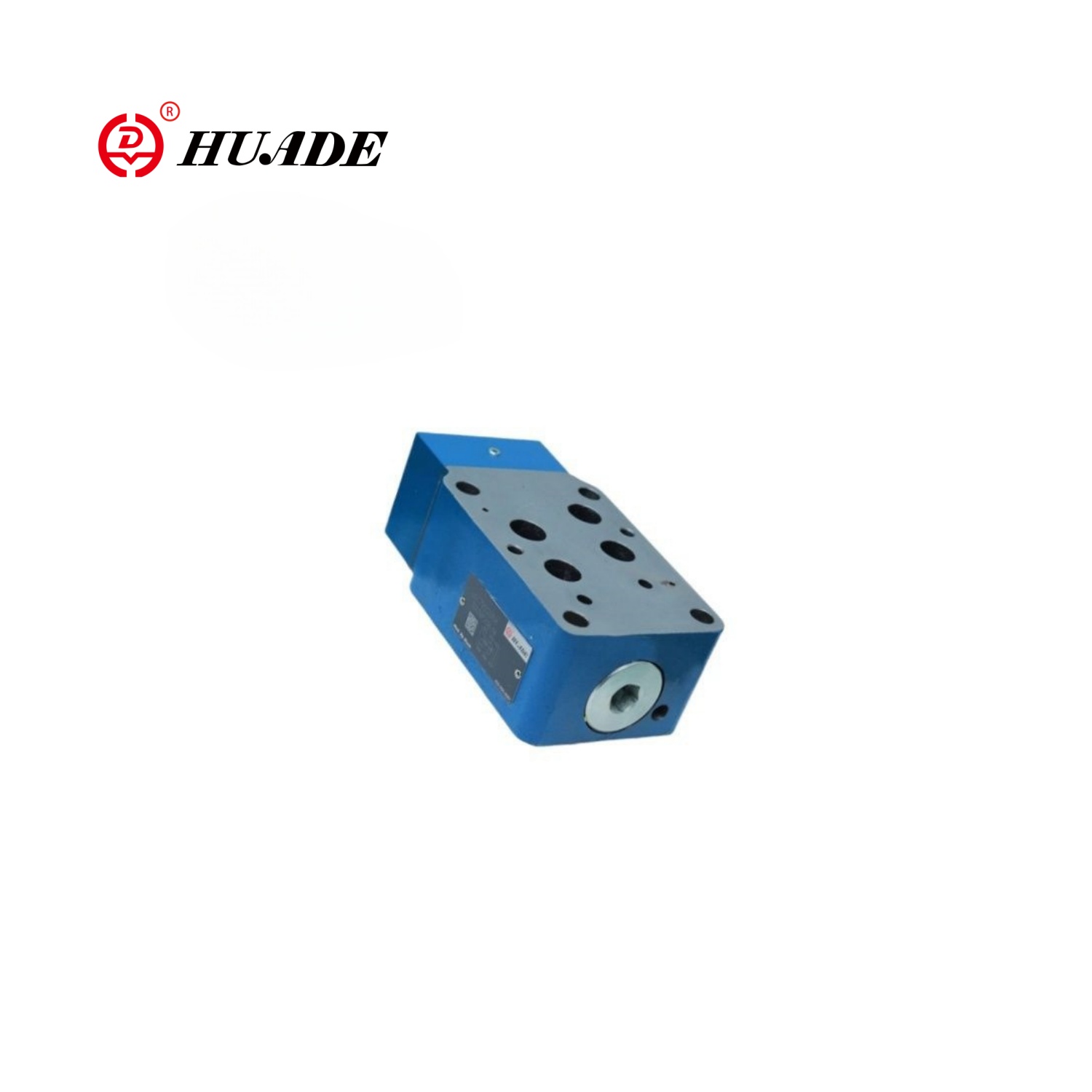

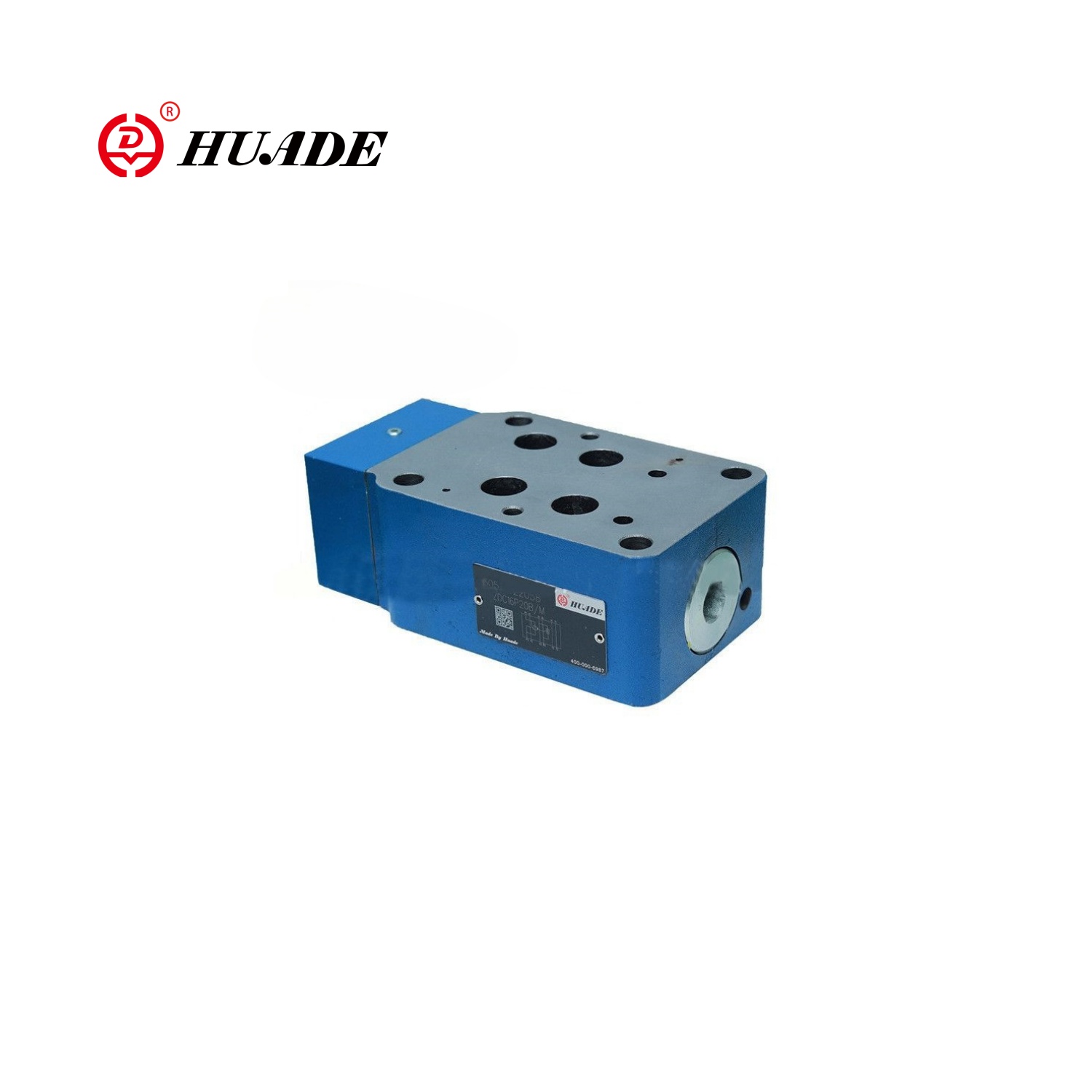

Компенсатор давления в метре ZDC

Huafilter поставляет Huade Brand Meter-In Dative Compensator ZDC клапан. Как дистрибьюторская компания, мы предоставляем клиентам экономически эффективные гидравлические клапаны по хорошей цене. Huade Hydraulic имеет хорошую репутацию в китайской индустрии гидравлических компонентов. Качество клапана ZDC хорошее. Поскольку клапаны из Haude Hydraulic также могут заменить ту же модель, предлагаемую Rexroth, гидравлические пропорциональные клапаны Huade продаются по всему миру.

Отправить запрос PDF скачатьЗагрузить

Описание продукта

The working principle of valve ZDC is based on the mechanism of throttling and pressure compensation. Meter-in pressure compensator ZDC is usually used together with a proportional directional valve WRZ to adjust the flow by controlling the opening of the throttle port, while using the pressure compensator to keep the pressure difference before and after the throttle port constant, thereby achieving load compensation. This makes the speed of the actuator unaffected by load changes, improving the stability and control accuracy of the system.

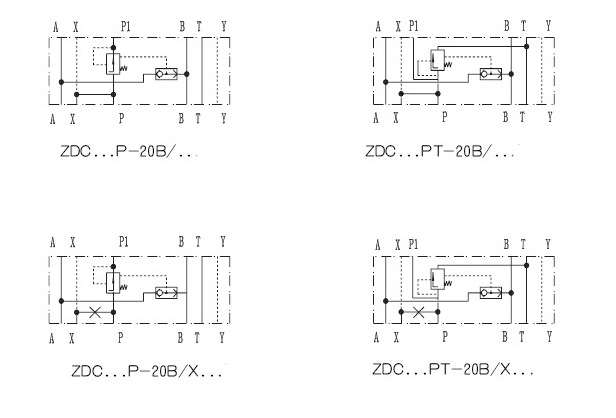

Product parameter of Meter-in Pressure Compensator ZDC

Size	10	16	25
Flow(L/min)	85	150	325
Weight(kg)	3	3.5	8.9
Operating pressure (MPa) Pmax	A、B、P	35
	T	25
	X	3 to 10
	Y	up to 3.( Only when be used with the port operated proportional direction valve, othenwise 15)
Degree of containsnation		≤20(recommend 10)

Product Feature And Application of Meter-in Pressure Compensator ZDC

Features:

▶Load compensation in port P to A or P to B via a built-in shuttle valve

▶2-way version "P'

▶3-way version "P T" (NS10-25)

▶Flow control when working together with a proportional directional valve

Application:

Meter-in pressure compensator ZDC is widely used in metallurgical machinery, metallurgical machinery, metallurgical machinery.

Function and Section of Meter-in Pressure Compensator ZDC

The meter-in pressure compensator ZDC valves are direct operated meter-in pressure compensators of 2 or 3-way design.

They are used for the load compensation as a meter-in pressure compensator in channel P.

These valves basically consist of the housing (1), the control spool (2), compression spring (3) with spring washer (4) and the cover (5) with integrated shuttle valve (6).

The compression spring (3) holds the control spool (2) in the open position from P1 to P, when the pressure differential P1 to A1 or P1 to B1 is less than 1.0 MPa.

If the pressure differential exceeds 1.o MPa, then the control spool (2) is moved to the left until the pressure differential is restored.

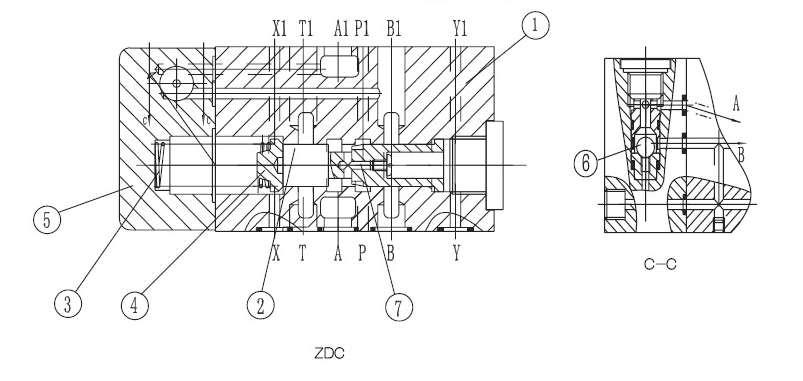

Structure of Meter-in Pressure Compensator ZDC
