Check Valve Rexroth Interchangeable

Pilot Operated Check Valve SV

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

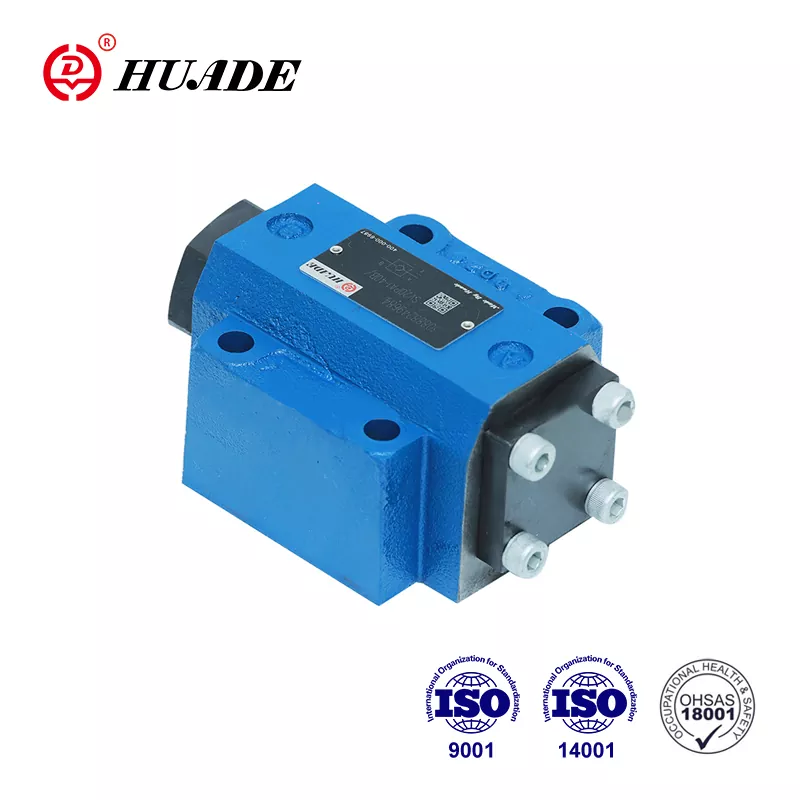

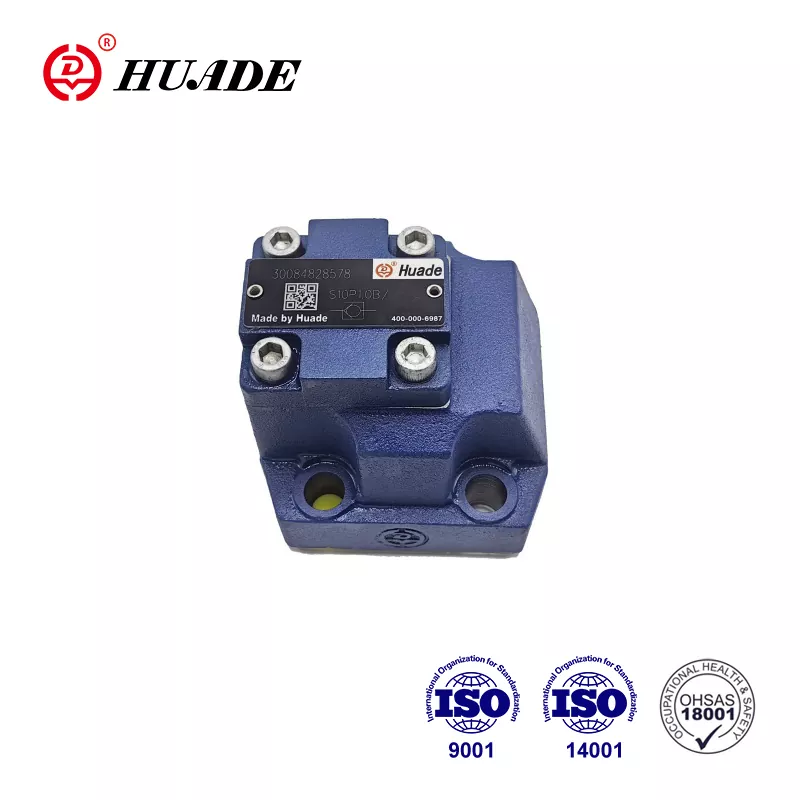

Pilot Operated Check Valve SV

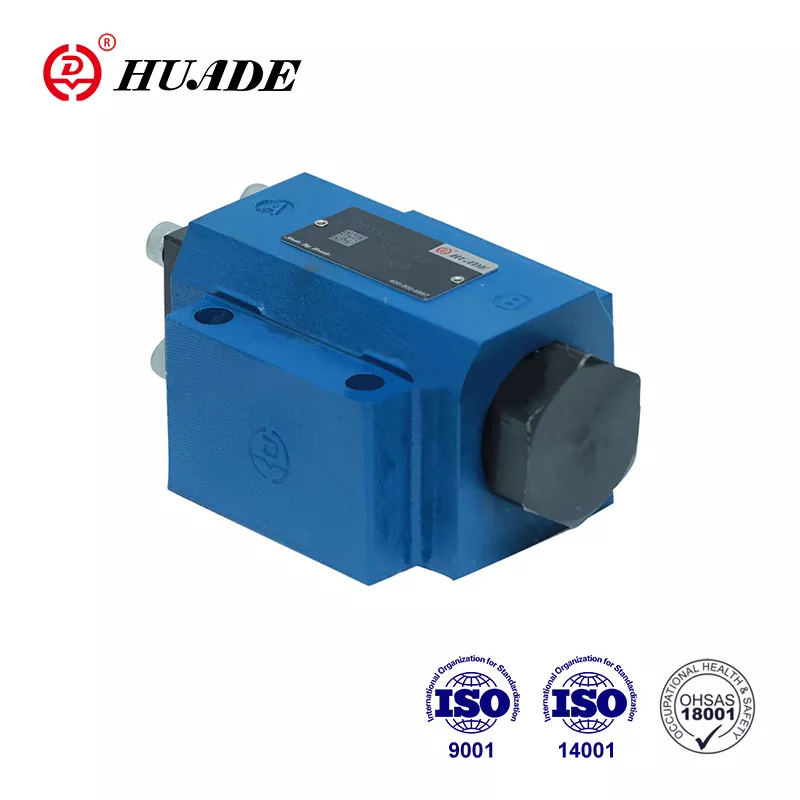

Pilot Operated Check Valve SV - Image 2

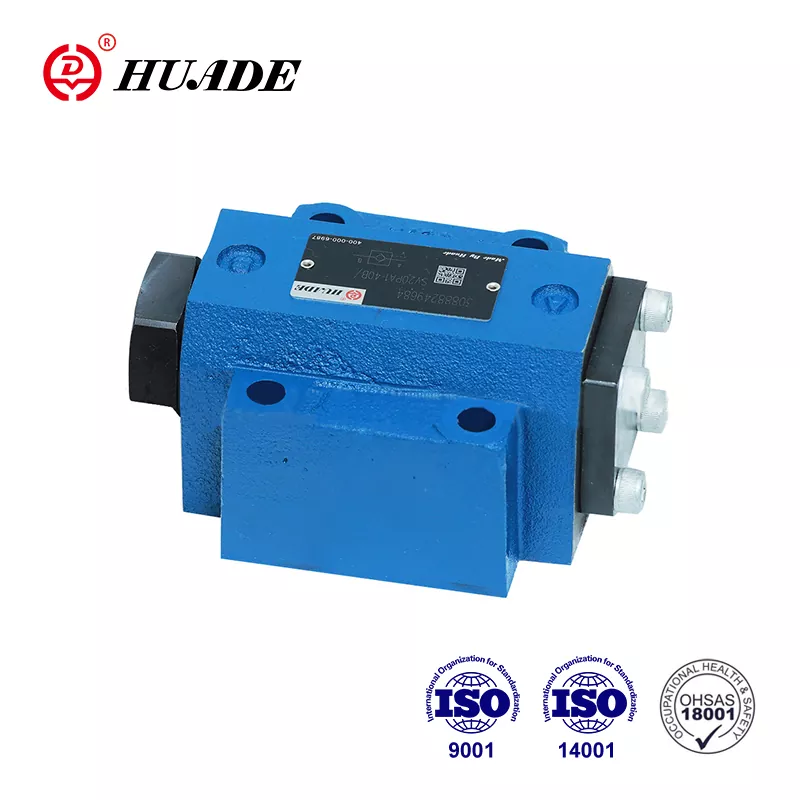

Pilot Operated Check Valve SV - Image 3

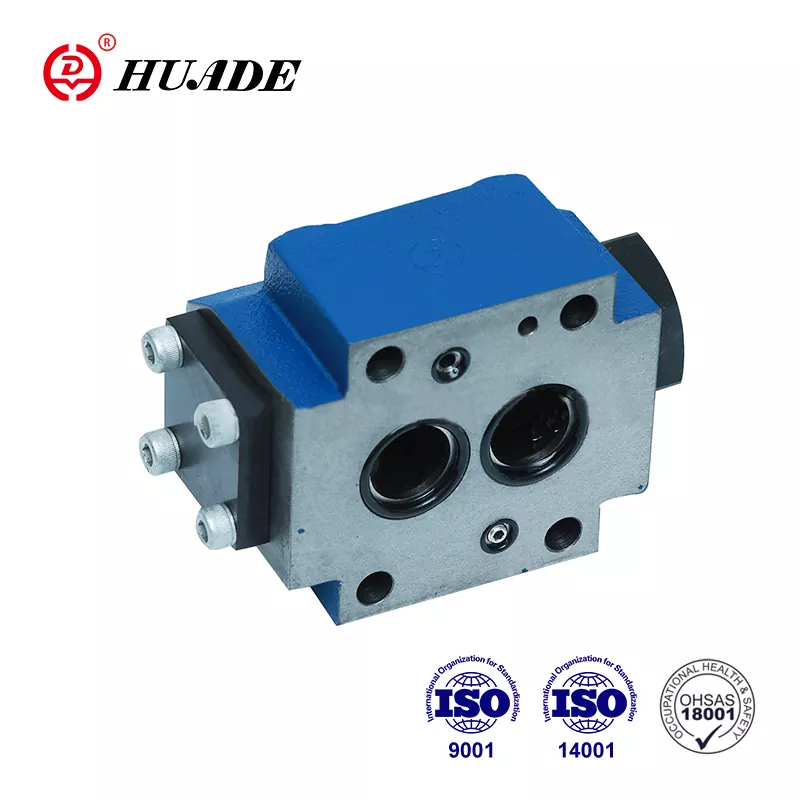

Pilot Operated Check Valve SV - Image 4
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth PILOT-OPERATED-CHECK-VALVE-SV equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Hydraulic pilot operation, Rexroth-compatible design, poppet-type construction with optional pre-opening
• Specifications: Sizes 10-30, operating pressure 0.5-315 MPa, subplate/threaded mounting options
• Applications: Load isolation, line break protection, hydraulic actuator locking systems

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

After Huade was established, it cooperated with Rexroth twice. Huade® check valve SV are affordable substitutes for Rexroth's same series of products. It is competitive with well-know products with good quality and lower price. The factory has passed ISO9001, ISO14001, and OH SAS18001. It is a well-know national brand in China. Within the guarantee period, it is free to repair. All check valves undergo rigorous testing before leaving the factory to ensure superior and stable performance. Huade® hydraulic valves are widely used in the military industry and other fields due to the superior performance.

From A to B free, from B to A through opening

Mineral oils(for NBR seal) or phosphate ester(for FPM seal)

Pressure fluid temperature range（℃）

Key Features

  • check valve controlled by fluid
  • For subplate mounting,Mounting pattern to DIN 24 340
  • Subplate or screw threaded connection
  • With or without leakage port
  • With or without pre-opening
  • Type with pre-opening,dampened decompression
  • 4 opening pressures
  • Porting pattem to Din 24 340 fom A, 1SO 4401 and CETOP- RP 121H

Industrial Applications

  • Pilot operated check valves SV are used for the isolation of operating circuits under pressure, as safeguard against the lowering of a load when a line break occurs or against creeping movements of hydraulically locked-in actuators.
  • Check valves SV are hydraulic pilot operated check valves in poppet type design which may be opened to allow low in either direction.
  • Basically these valves consist of housing (1), poppet (2),compression spring (3), control spool (4) as well as a pre-opening,as ball poppet valve(5), optionally.
  • The valve enables free flow from A to B, in the counter direction the poppet (2) is held on its seat by the system pressure, additionally to the spring force.
  • Through the pressure connection at control port X the control piston (4) is moved to the right. This pushes the poppet(2) from the seat. Now the valve may also have a flow from B to A.
  • In order to ensure the proper opening of the valve via the control piston (4) a certain minimum control pressure is necessary.
  • This valve has a additional pre-opening. Through pressure connection at control port X the control piston (4) is pushed to the right.
  • This first pushes the ball (5) and then the poppet (2) from the seat. Now the valve may also have a flow from B to A. Because of the pre-opening there is a dampened decompression of the fluid under pressure. Through this possible pressure shocks are avoided
  • Cutaway view of check valve type SV. .PA
  • (without leakage port, with pre-opening)

Technical Parameters

Mechanical ratings and operating limits for the Pilot Operated Check Valve SV:

Parameter / Dimension Name Value / Rating Specification
Technical data Technical data
Style - 10 - 16 - 20 - 25 30
Weight - subplate mounting (kg) - 1.8 - - - 4.7 7.8
Weight - threaded connection (kg) - 2.1 - 5.4 - 10 10
Installation position (MPa) - Optional Optional
Direction of flow (MPa) - From A to B free, from B to A through opening From A to B free, from B to A through opening
Operating pressure, max.(MPa) - 0.5~315 0.5~315
Control pressure, max (MPa) - 0.5~315 0.5~315
Control volume -port X (cm3) - 2.5 - 10.8 - 19.27 19.27
Control areas -area A1 (cm3) - 1.3 - 3.46 - 5.72 5.72
-area A2 (cm3) - 0.33 - 0.7 - 1.33 1.33
-area A3 (cm3) - 3.8 - 10.17 - 16.61 16.61
-area A4 (cm3) - 0.79 - 1.13 - - 1.54 1.54
Pressure fluid - Mineral oils(for NBR seal) or phosphate ester(for FPM seal) Mineral oils(for NBR seal) or phosphate ester(for FPM seal)
Pressure fluid temperature range（℃） - -30～+80 -30～+80
Viscosity range    (mm2/s) - 2.8 to 500 2.8 to 500
